Texas Boat World

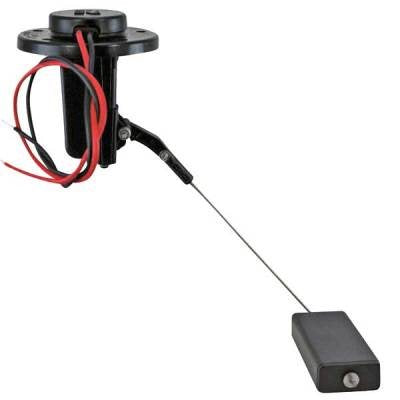

MOELLER 035791-10 REED ARRAY 6-24IN FUEL SENDING UNIT
MOELLER 035791-10 REED ARRAY 6-24IN FUEL SENDING UNIT
Regular price
$55.81 USD
Regular price
Sale price
$55.81 USD
Unit price
/
per
Couldn't load pickup availability
Reed Array tank sender fits 6” to 24” tank depths. The sender is designed for top mounting in aluminum, plastic, or stainless steel fuel tanks in all types of applications. It includes special features and protection from corrosion (internal and external to the fuel tank) which makes them the quality standard for the marine industry. Comes standard with a SAE 5 hole mounting bolt pattern with the lead hole at 12:00 and the float arm at 3:00. The head and support are molded from UV stabilized Acetal and is suitable for medium-duty off-road conditions. The electrical circuit is sealed to protect components from fuel, contaminants, water and the molding-curing process (out-gassing). This Reed Array Sender offers dependable, long-lasting Reed Switch and magnet technology. The sender is suitable for gasoline, ethanol, diesel, bio-diesel and non-potable water. Industry standard output: 240-30 ohms. The close tolerances held on this series of Reed Array Fuel Level Sender will provide the proper signal for any of the popular 2” [50.8 mm] panel mounted receivers.
